SPIRAL TYPE PAPER CORE MAKING MACHINE JY50B
Visits:SPIRAL TYPE PAPER CORE MAKING MACHINE JY50B

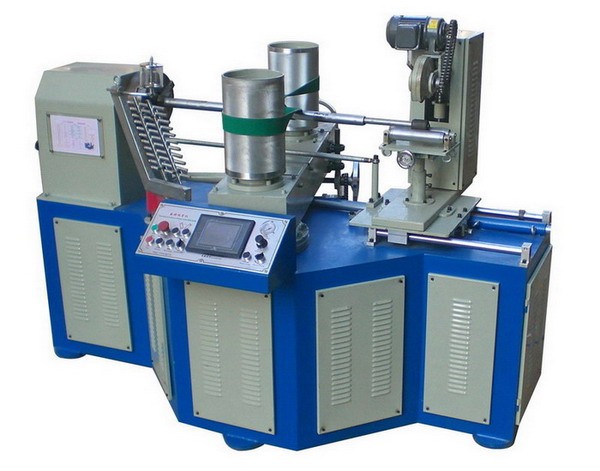

THIN PAPER CORE MAKING MACHINE MODEL JY 50B
This paper core making machine with model JY50B is suitable for producing the thin paper cores,
wall thinkness range of paper core is 0.6mm to 5mm, diameter range is 15-150mm.

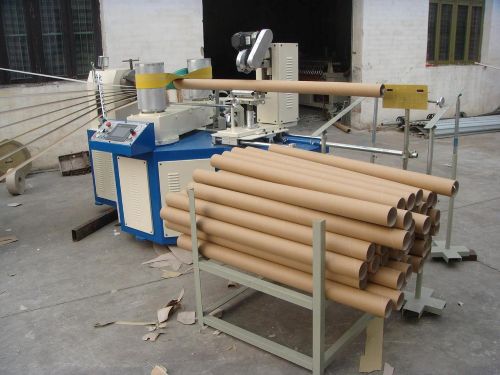

this paper core making machine is suitable for all kind of paper tube , paper can production. Such as package tin, tea caddy,
food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
parameters of this paper core making machine as below
JY-50 B paper core making machine-- Main specification and equipment | |||||
Technical parameters | Control system | Equipment | |||
Number of roll paper | 2-10layer | PLC controller | DVP-F232 | Remote controller | One pair |
Max diameter | 150mm | Touch screen | we!view506T | Auto falling tube shelf | Have |
Min diameter | 15mm | Transducer | Delta 4 KW | Angle of belt | Auto |
Max thickness | 5mm | Synchronized control | Have | Belt adjust | |
Min thickness | 0.6mm | Execute equipment | YBLXW-AZ | Mainframe swing angle | 5GU 60:1 |
Three claws chuck | Swing motor | 90 W | Gluing way | Independent tank / polyurethane squeegee. | |
Winding head | 2 rolls of belts | Signal | SHFG | Stop without paper | Auto |
Cutting mode | Single knife cutting | Pneumatic part | Airtac | Paper-shelf type | Whole-shelf |

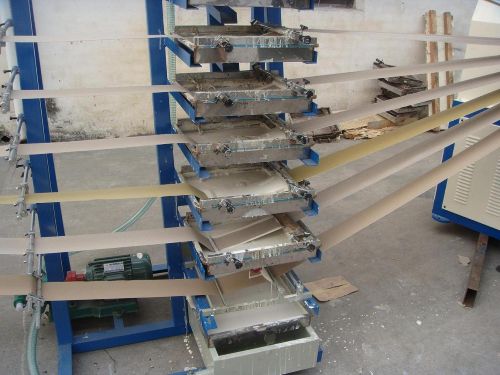

Glue way | Double sides | Length- fixed way | Infrared way | Auto giving glue | Gear pump 1.5KW |
Operator | 1-2person | Drive system | Tape wax system | Have | |
Paper delivery speed | 3-20m | Electrical motor | 4 KW | Enclosed component | |
Speed control | Transducer | Motor speed | 1400r | Belt | Sailcloth |
Input power | 3*380V | Gearbox type | WPO135 | Winding core rod | 2 |
Weight | 2000 kg | Driving chain type | 16A*2 | Winding core belt | 2 |
Main frame size | 2500กม1600กม2000mm | Cutting blade | Rawson | Useful tool | A set |
Bearing | Wanxiang | Brand | JinYue | ||
