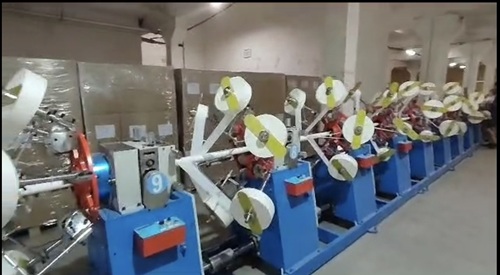

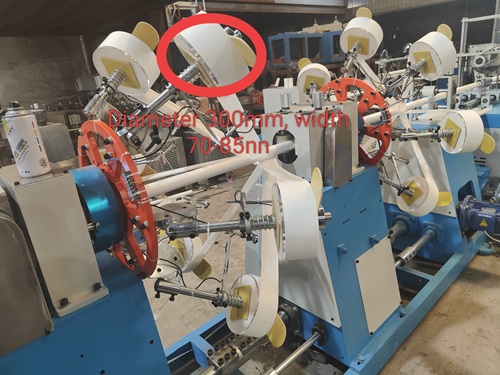

Paper Lint Clearing Roller Making machine

model: LX60

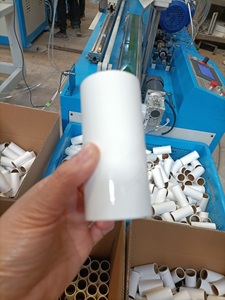

this paper lint clearing roller making machine is used to produce the paper lint roller, maximum 60

layers and 10 sets.

Use: This paper lint clearing roller making machine is used to produce lint roller, cleaning roller with

spiral sheet. The material is paper which is coated special adhesive for cleaning out dust dirt.

FUNCTIONS:

More than eighty function settings, set machine operation condition arbitrarily

While cutting, automatic transmission and reply

Operation panel or remote control operation, very convenient;

Frequency conversion control than ordinary electromagnetic speed can be 30% energy

Computer PLC control, with the remote control port

Double infrared positioning and host automatic transmission make paper tube length more precise

Sticky paper roller in diamond shape

Main technical parameter

Roll layers: 6-60 layers

Operator : 2-3 person

Operate way Spiral : Host ratio

Turbine reducer 1:30

Diameter of core 35-42 mm

Product speed: 1-8 m per min

Number of roller machine: 10 sets

Cutting way Saw cutter

Main motor 7.5 KW

Mainframe size 10000x1000x1500 mm

Cutting motor 2.2 KW

Way of fix length :Double infrared

Feeding way: Single or double glue

Speed control: Transducer

Voltage :3x380V

Wall thickness 2-7 mm

Stop automatically when run out of paper

this paper lint clearing roll making machine is one of our simple machine, if the buyer require to produce the paper lint roll with 90 layers, we have another type paper lint roll making machine and fully automatic type.
