BOPP FILM PAPER CORE MAKING MACHINE
Visits:BOPP FILM PAPER CORE MAKING MACHINE
the bopp film manufacturer need paper core making machine to produce the paper cores for the BOPP
FILM.
normally the BOPP FILM paper cores size as below: inner diameter 12-300mm, but the normal ID is
76mm(3 inch), the paper core wall thickness is 1.5-6mm,
the paper core length is 600-2600mm, the detail is up to each BOPP FILM manufacturers.

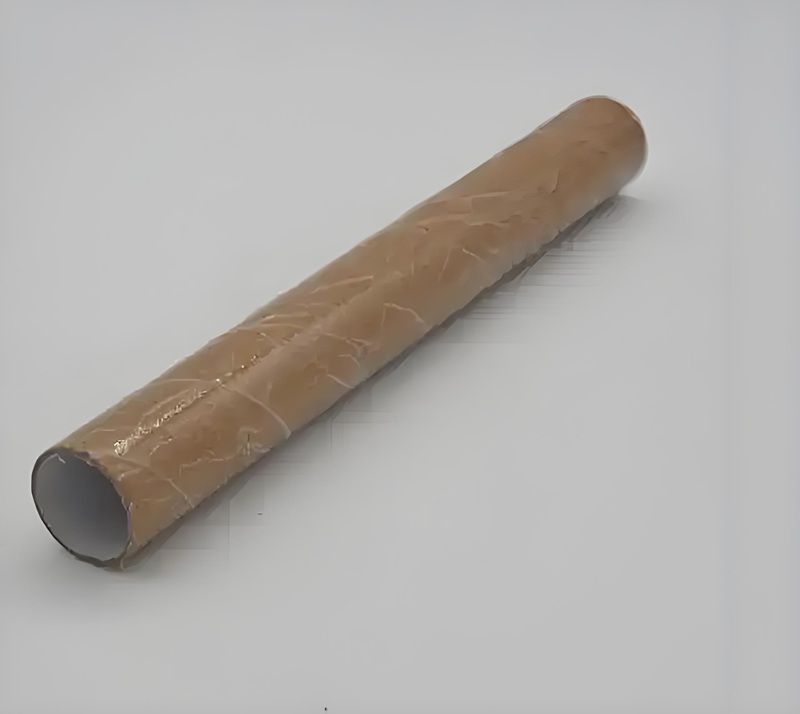

the photo as below.

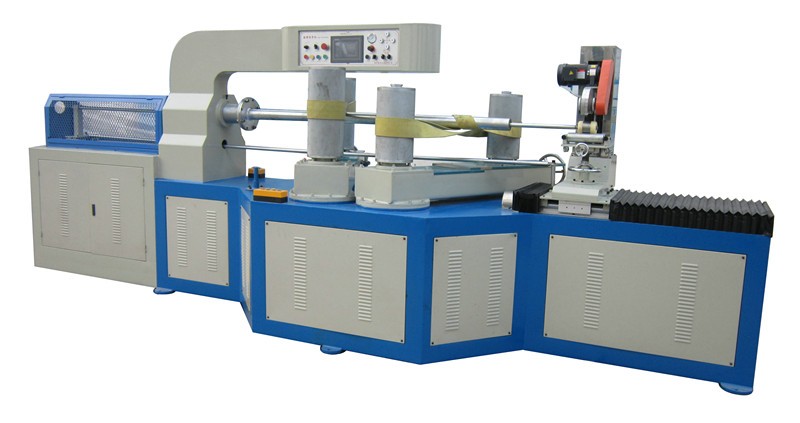

we have this BOPP FILM PAPER CORE MAKING MACHINE.
the detail specifications list as below.
Technical Parameter | Control system | |||
Number of roller | 3-24 layer | PLC controller | Delta DVP14SS2 | |
Tube diameter | 25-300 mm | Touch screen | MCGS TPC7062 | |
Tube wall-thickness | 1-15 mm | Transducer | YASKAWA 15 KW | |
Core mould fixed way | Flank chuck | Electric part | Schneider | |
Winding head | 4 | Single part | Omron | |
Cutting way | Round knife | Pneumatic part | AIRTAC | |
Gluing way | Single / double sides | Fix length way | Optoelectronic switch/encode | |
Operator | 2-3 person | Equip device | ||
Winding speed | 3-30 m/min | Paper shelf type | Integral reel stand | |
Speed control | Transducer | Auto fall tube shelf | Have | |
Driving system | Glue shelf | Have | ||
Main motor | 15 KW | Belts | 4 | |
Reducer type | WPDO 200 | Core mould | 2 | |
Cutting motor | Stepper motor | Cut up-down control | Y lead screw+ stepper motor | |
Glue pump | 1.5 KW | Cut left-right control | Z lead screw+ servo motor | |
Mainframe size & Weight | ||||
Mainframe size | 5500*2000*2000 mm | Weight | 4000 KG | |
Area space | 16000*10000 mm | |||

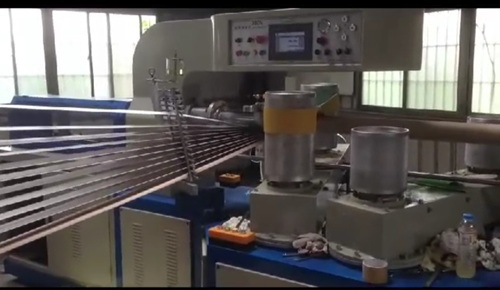

this BOPP FILM PAPER CORE MAKING MACHINE use numerical control servo cutter device with
high precision cutting, it has automatically cut, automatically fall paper core, automatically
change speed and revert functions. Computer PLC control, touch screen man-machine

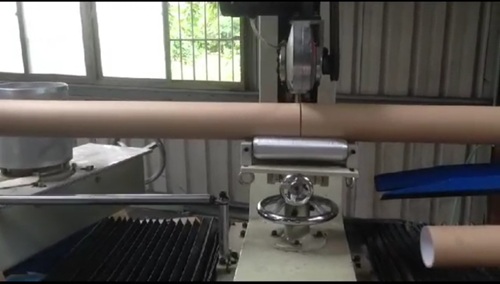

interface operation. this BOPP FILM paper core making machine use round knife cutting,
incision more smooth, performance more stable. this machine has stainless steel gluing box,
with polyurethane scraper and high carbon steel plastic knife with durable in use. Integration

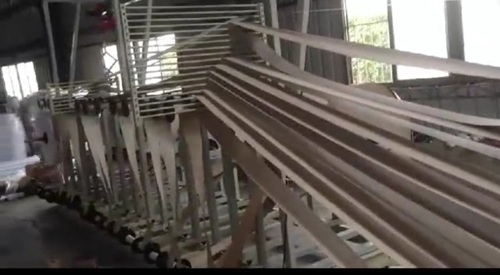

linkage device of integral paper reel stand and glue system, all electric regulation to feed paper.
With multifunction waxing paper device and auto stop when paper cut off.
welcome BOPP FILM manufacturer contact us about this machine.
