ALUMINIUM FOIL FILM PAPER CORE MACHINE
Visits:ALUMINIUM FOIL FILM PAPER CORE MACHINE

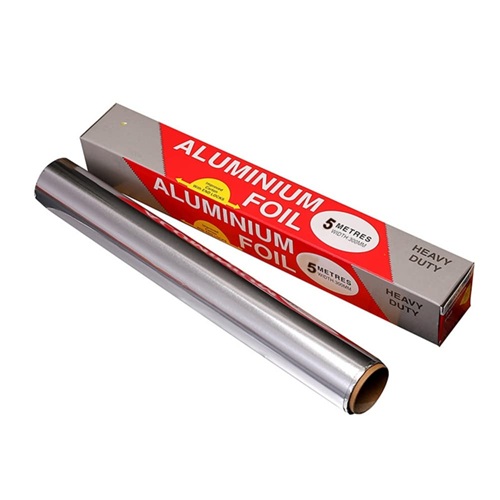

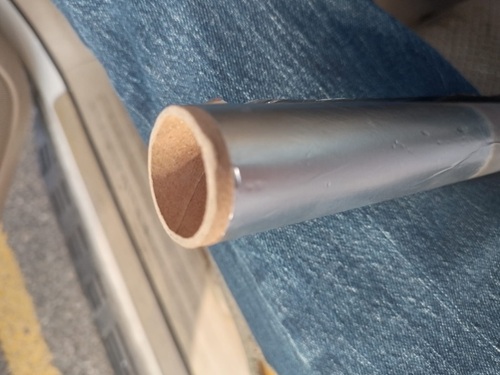

the below is aluminium foil film and aluminium foil film paper cores.
normally the paper core size is inner diameter 25mm, outter diameter 39mm
and paper core length is 310mm
we have the ALUMINIUM FOIL FILM PAPER CORE MACHINE to produce this
paper cores.

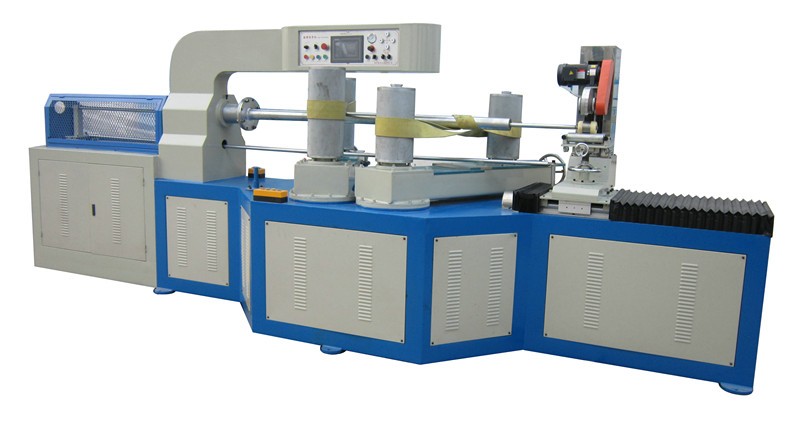

the below is specification list and photos of this aluminium foil film machine.
Technical Parameter | Control system | |||
Number of roller | 3-24 layer | PLC controller | Delta DVP14SS2 | |
Tube diameter | 25-300 mm | Touch screen | MCGS TPC7062 | |
Tube wall-thickness | 1-15 mm | Transducer | YASKAWA 15 KW | |
Core mould fixed way | Flank chuck | Electric part | Schneider | |
Winding head | 4 | Single part | Omron | |
Cutting way | Round knife | Pneumatic part | AIRTAC | |
Gluing way | Single / double sides | Fix length way | Optoelectronic switch/encode | |
Operator | 2-3 person | Equip device | ||

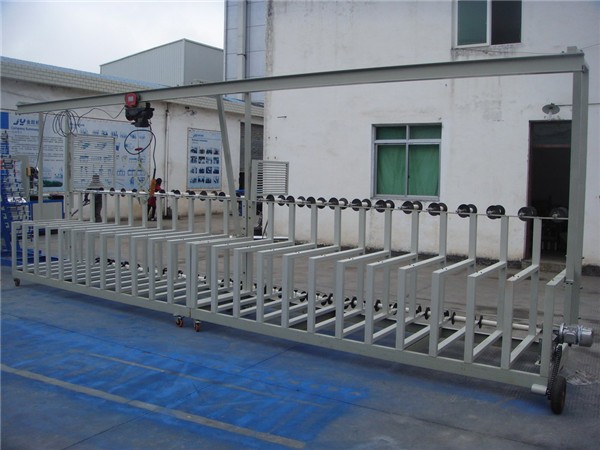

Winding speed | 3-30 m/min | Paper shelf type | Integral reel stand | |
Speed control | Transducer | Auto fall tube shelf | Have | |

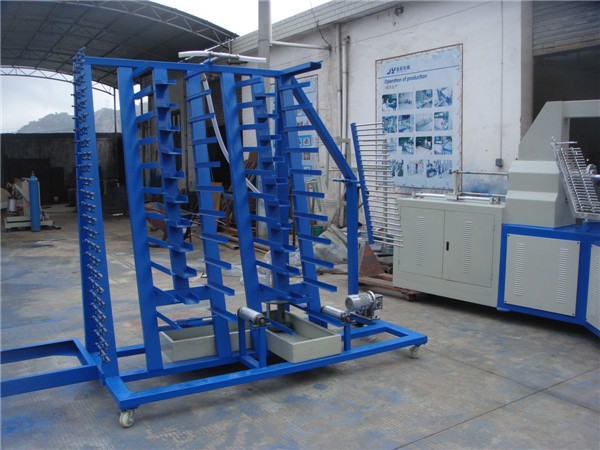

Driving system | Glue shelf | Have | ||
Main motor | 15 KW | Belts | 4 | |
Reducer type | WPDO 200 | Core mould | 2 | |
Cutting motor | Stepper motor | Cut up-down control | Y lead screw+ stepper motor | |
Glue pump | 1.5 KW | Cut left-right control | Z lead screw+ servo motor | |
Mainframe size & Weight | ||||
Mainframe size | 5500*2000*2000 mm | Weight | 4000 KG | |
Area space | 16000*10000 mm | |||
by the way, this machine is single blade spiral type paper core machine, so it need
one extra paper core recutter machine to cut the paper cores into 310mm.
welcome ALIMINIUM FOIL FILM MANUFACTURERS to contact me about this machine.
